Visual Select

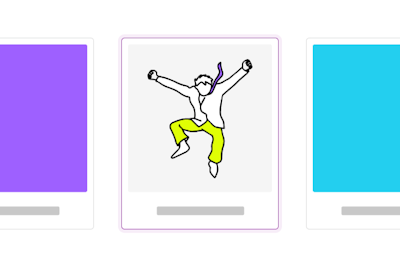

Elegantly visualize a group of options in the DatoCMS Editor using colors, images, and more.

This is a Community Plugin! Learn how create your own plugin, or copy and remix existing ones in our documentation

Visual Select — a DatoCMS Plugin

Elegantly visualize a group of options in the DatoCMS Editor using colors, images, and more.

Configuration

This plugin is designed to be used on a per-field basis. To get started, add a single-string text field to any model or block, and under the presentation tab change the field editor from "Text input" to "Visual Select".

JSON Data Structure

Each field requires a JSON configuration object. This object has 2 key fields — the first is extends and the second is options.

To understand the behaviour of extends, see the Global Presets section below.

options represents each visual option displayed to the editor, as well the underlying value returned by the API. There are 4 required fields on each option:

Key	Value	Description
`name`	`string`	The label displayed in the editor
`type`	`string`	The visualization type, see table below
`display`	`string`	The visualization display value, see table below
`value`	`string`	The value returned by the API

Visualization displays

Type	Display	Example
`color`	`hex`	`#bada55`
`image`	`url`	`https://example.com/my-icon.svg`

Visualization

There is also a third optional field you can add called presentation

presentation Is an object representing how the options should be displayed. It has 3 optional fields:

Key	Value	Description
`type`	`string`	The presentation type, can be either `grid` or `carousel`
`columns`	`integer`	The number of columns, used only if the type `grid` was selected
`width`	`string`	The width of each option item, used only if the type `carousel` was selected

Example configuration

1
{
2
  "options": [
3
    {
4
      "name": "Green",
5
      "type": "color",
6
      "display": "#bada55",
7
      "value": "text-brand-green"
8
    },
9
    {
10
      "name": "Yellow",
11
      "type": "color",
12
      "display": "#fcba03",
13
      "value": "text-brand-yellow"
14
    }
15
  ],
16
  "presentation": {
17
    "type": "carousel",
18
    "width": "300px"
19
  }
20
}

Global Presets

You'll often have a collection of options that you want to make available across multiple different models or blocks. Instead of repeating the same configuration object on each field, you can make use of the global presets functionality.

To supply a global presets object, navigate to the Visual Select plugin settings under Settings > Plugins > Visual Select.

JSON Data Structure

The JSON configuration for global presets is a simple dictionary object, where each entry is an array of options following the same structure as those used on individual fields.

To make use of a global preset, first define the dictionary object in the plugin settings:

1
{
2
  "brandColors": [
3
    {
4
      "name": "Green",
5
      "type": "color",
6
      "display": "#bada55",
7
      "value": "text-brand-green"
8
    },
9
    {
10
      "name": "Yellow",
11
      "type": "color",
12
      "display": "#fcba03",
13
      "value": "text-brand-yellow"
14
    }
15
  ]
16
}

and then in an individual field's configuration object, use the extends key:

1
{
2
  "extends": ["brandColors"]
3
}

You can extend multiple presets if required, and you can also supply additional options:

1
{
2
  "extends": ["brandColors"],
3
  "options": [
4
    {
5
      "name": "Blue",
6
      "type": "color",
7
      "display": "#00d0ff",
8
      "value": "text-specials-blue"
9
    },
10
    {
11
      "name": "Purple",
12
      "type": "color",
13
      "display": "#8b05eb",
14
      "value": "text-specials-purple"
15
    }
16
  ]
17
}

The example above would produce the following editor visualization (where Green and Yellow are coming from the brandColors preset, and Blue and Purple are from the additional options supplied):
